| Type | Description | ||
|---|---|---|---|
| Package Type | TO-247-3LD | Gate Level | Standard |
| Case Outline | 340CX | V(BR)DSS Min (V) | 650 |
| MSL Temp (°C) | 0 | RDS(on) Max @ VGS = 10 V (mΩ) | 27.4 |
| VGS Max (V) | 30 | PD Max (W) | 595 |
| Channel Polarity | N-Channel | Package Name | TO-247-3 |
| Vgs(th) Max (V) | 5 | ID Max (A) | 75 |
| Container Qty. | 450 | Silicon Family | PowerTrench® T1 |
| OPN in older Technology | 0 | Container Type | TUBE |
| Configuration | Single | Qg Typ @ VGS = 10 V (nC) | 225 |
| Type | High Voltage | Wide SOA Mosfets | 0 |
YG GROUP supports reliable sourcing through quality controls and compliance documentation. Please confirm product requirements, applicable certifications and supporting documents before ordering.

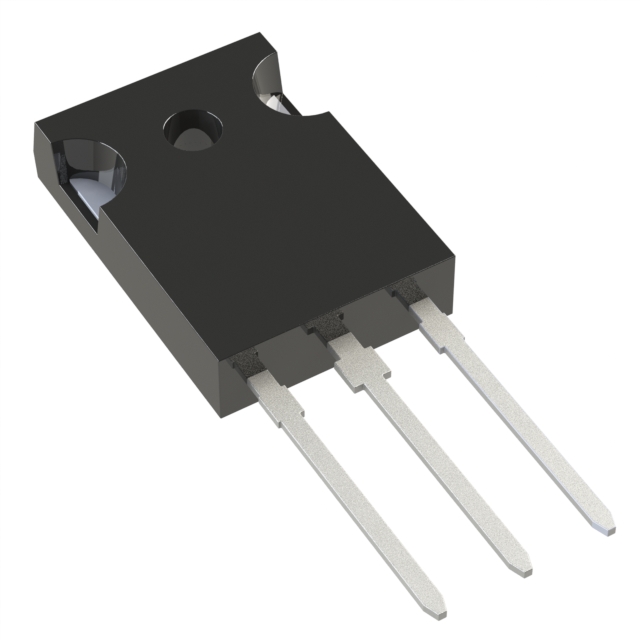

NTHL027N65S3HF is an authentic electronic component manufactured by onsemi, categorized under Transistors. It is supplied in the standard TO-247-3 package footprint, providing industry-standard mechanical dimensions and terminal configurations for board-level assembly. Full pinout configurations, physical footprint drawings, and rated operating tolerances are documented in the official NTHL027N65S3HF datasheet above.
Electronic component spot-market pricing for NTHL027N65S3HF fluctuates based on real-time global availability, production date codes, minimum order quantities (MOQ), and packaging formats (e.g., Reel, Tube, Tray). Using an RFQ ensures you receive accurate, real-time volume pricing tied to verified, traceable inventory rather than stale catalog estimates.
Lead times for NTHL027N65S3HF depend on whether stock is dispatched from our central hub or regional franchise partners. Ready-to-ship inventory typically leaves the warehouse within 1–3 business days following quality inspection, while factory-direct or back-ordered allocations are confirmed with an estimated ship date upon RFQ reply.
