| Type | Description | ||
|---|---|---|---|
| Package | SO-16-300mil | Settling Time | 2us |
| Interface | SPI;MICROWIRE | Operating Temperature | -40℃~+85℃ |

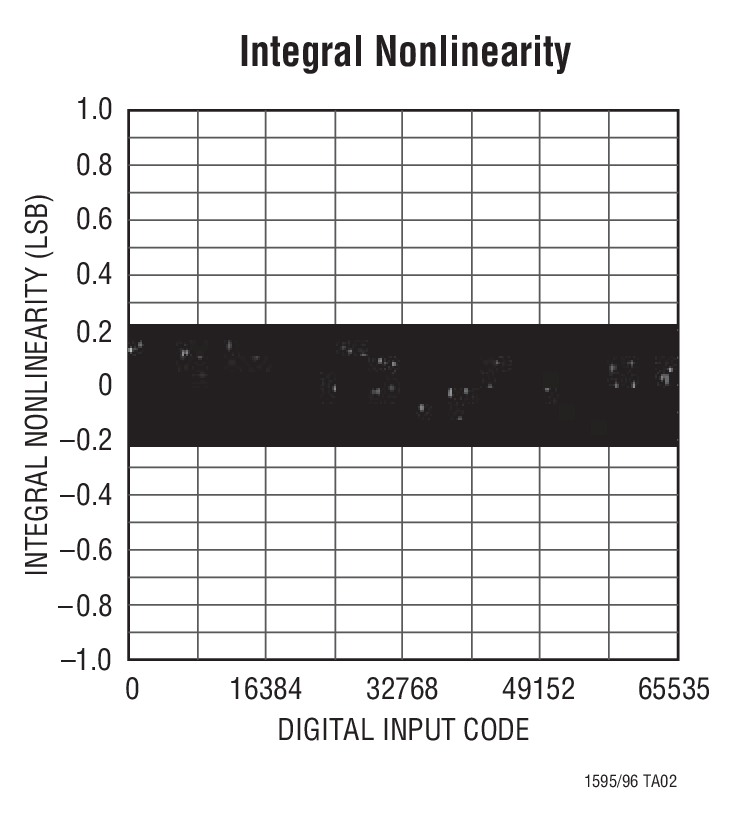

| Voltage - Supply | 4.5V~5.5V | Integral non - linearity | 0.25LSB |
| Resolution(Bits) | 16 | Number of Channels | 1 |
| CNHTS | 8542399000 | USHTS | 8542390001 |
| TARIC | 8542399000 | CAHTS | 8542390000 |
| BRHTS | 85423999 | INHTS | 85423900 |
| MXHTS | 8542.39.99 |
YG GROUP supports reliable sourcing through quality controls and compliance documentation. Please confirm product requirements, applicable certifications and supporting documents before ordering.

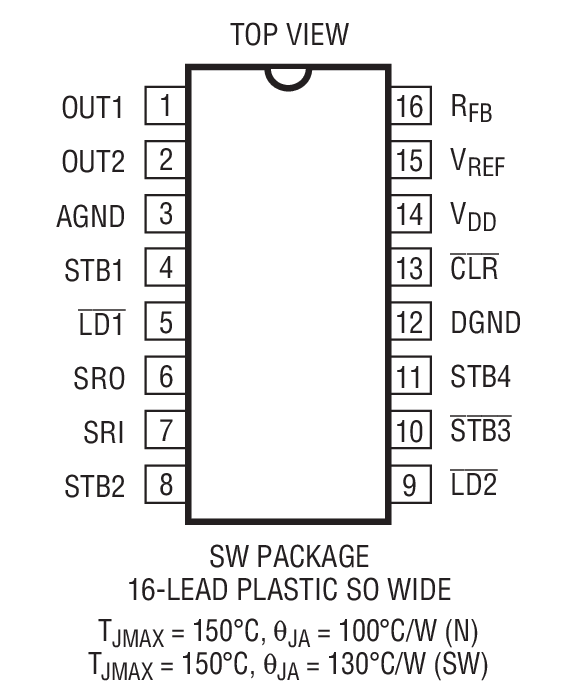

LTC1596-1BISW#PBF is an authentic electronic component manufactured by Analog Devices, categorized under Data Converter ICs. It is supplied in the standard SO-16-300mil package footprint, providing industry-standard mechanical dimensions and terminal configurations for board-level assembly. Full pinout configurations, physical footprint drawings, and rated operating tolerances are documented in the official LTC1596-1BISW#PBF datasheet above.
Electronic component spot-market pricing for LTC1596-1BISW#PBF fluctuates based on real-time global availability, production date codes, minimum order quantities (MOQ), and packaging formats (e.g., Reel, Tube, Tray). Using an RFQ ensures you receive accurate, real-time volume pricing tied to verified, traceable inventory rather than stale catalog estimates.
Lead times for LTC1596-1BISW#PBF depend on whether stock is dispatched from our central hub or regional franchise partners. Ready-to-ship inventory typically leaves the warehouse within 1–3 business days following quality inspection, while factory-direct or back-ordered allocations are confirmed with an estimated ship date upon RFQ reply.
