TPS4H160-Q1 thumbnail 1
Texas Instruments

TPS4H160-Q1

Category
Power Management ICs
Manufacturer
Texas InstrumentsDetails
Datasheet
Description

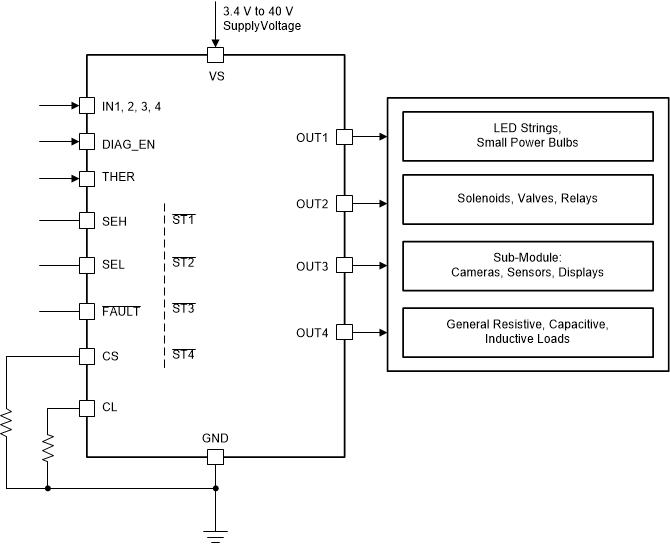

40-V, 160-mΩ, 4-ch automotive smart high-side switch with adjustable current limit
Similar Products
—
Quality Control
Authentic & Traceable
Shipping (In-stock)
1-3 business days
Quote Response
Within 24 Hours
Stock Status1230
QuantityTPS4H160-Q1
Country

Get Tiered Pricing (Submit RFQ)

Specification
Product Details
Key Features
Documentation
TypeDescriptionTypeDescription
Number of channels4RatingAutomotive
Operating voltage (max) (V)40Operating voltage (min) (V)4
Ron (typ) (mΩ)160Imax (A)2.5
Current limit (max) (A)7Current limit (min) (A)0.25
Current limit typeAdjustableFETInternal
FeaturesCurrent sense/monitor, Digital output, Thermal shutdown, Under voltage lock outTI functional safety categoryFunctional Safety-Capable
Current limit accuracy+/- 15% @ 0.5ACurrent sense accuracy+/- 3.25mA@ 5mA
Operating temperature range (°C)-40 to 125FunctionAdjustable current limit, Automotive load dump compatibility, Current monitoring, Inductive load compatibility, Inrush current control, Short circuit protection, Thermal shutdown
PackageHTSSOP (PWP)Pins28
Size62.08 mm² (9.7 mm × 6.4 mm)
Certified Quality & Compliance
Purchase & Inquiry
Secure Packaging
Shipping & Availability
Payment

YG GROUP (YUGUANG INTERNATIONAL(HK)CO.,LTD) supports reliable sourcing through quality controls and compliance documentation. Please confirm product requirements, applicable certifications and supporting documents before ordering.

  • 1. Certification Scope: Quality certifications apply only to the entities, sites and activities listed in valid certificates. Management system certification does not certify each individual product.
  • 2. Product Authenticity: Products must match the agreed manufacturer, part number and condition. Supplier screening and authenticity checks help reduce counterfeit risk.
  • 3. Inspection & Testing: The inspection scope follows product risks and agreed requirements. Additional testing, laboratory arrangements, costs and lead times require written confirmation.
  • 4. Traceability & Documentation: Request conformity certificates, traceability records or test reports before ordering. Document availability, issuer and coverage must be confirmed for the offered goods.
  • 5. Environmental Compliance: RoHS and REACH information is based on applicable manufacturer documentation. Confirm the exact part, declaration date and relevant exemptions before ordering.
  • 6. Handling & Protection: Handling, storage and packaging follow applicable product requirements, including ESD and moisture protection where required. Special handling requirements must be agreed before ordering.
ERAI

Loading related products…

Product FAQ
Purchasing FAQ

What type of component is TPS4H160-Q1, and what package does it use?

TPS4H160-Q1 is an authentic electronic component manufactured by Texas Instruments, categorized under Power Management ICs. It is supplied in the standard HTSSOP (PWP) package footprint, providing industry-standard mechanical dimensions and terminal configurations for board-level assembly. Full pinout configurations, physical footprint drawings, and rated operating tolerances are documented in the official TPS4H160-Q1 datasheet above.

Why is pricing for TPS4H160-Q1 available via RFQ rather than a fixed checkout price?

Electronic component spot-market pricing for TPS4H160-Q1 fluctuates based on real-time global availability, production date codes, minimum order quantities (MOQ), and packaging formats (e.g., Reel, Tube, Tray). Using an RFQ ensures you receive accurate, real-time volume pricing tied to verified, traceable inventory rather than stale catalog estimates.

How quickly can TPS4H160-Q1 be shipped once quoted?

Lead times for TPS4H160-Q1 depend on whether stock is dispatched from our central hub or regional franchise partners. Ready-to-ship inventory typically leaves the warehouse within 1–3 business days following quality inspection, while factory-direct or back-ordered allocations are confirmed with an estimated ship date upon RFQ reply.
