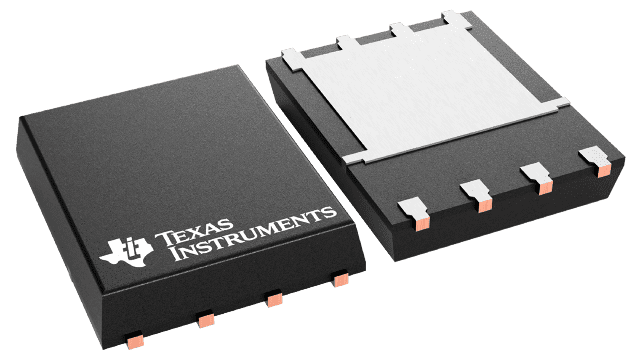

CSD19534Q5A thumbnail 1
Texas Instruments

CSD19534Q5A

Category
Transistors
Manufacturer
Texas InstrumentsDetails
Datasheet
Description
100-V, N channel NexFET™ power MOSFET, single SON 5 mm x 6 mm, 15.1 mOhm
Similar Products
—
Quality Control
Authentic & Traceable
Shipping (In-stock)
1-3 business days
Quote Response
Within 24 Hours
Stock Status7770
QuantityCSD19534Q5A
Country

Get Tiered Pricing (Submit RFQ)

Specification
Product Details
Key Features
Documentations
TypeDescriptionTypeDescription
VDS (V)100VGS (V)20
TypeN-channelConfigurationSingle
Rds(on) at VGS=10 V (max) (mΩ)15.1VGSTH typ (typ) (V)2.8
QG (typ) (nC)17QGD (typ) (nC)3.2
QGS (typ) (nC)5.1ID - silicon limited at TC=25°C (A)44
ID - package limited (A)40Logic levelNo
RatingCatalogOperating temperature range (°C)-55 to 150
PackageVSONP (DQJ)Pins8
Size29.4 mm² (4.9 mm × 6 mm)
