  5. /CSD17581Q5A
CSD17581Q5A thumbnail 1
Texas Instruments

CSD17581Q5A

Category
Transistors
Manufacturer
Texas InstrumentsDetails
Datasheet
Description
30-V, N channel NexFET™ power MOSFET, single SON 5 mm x 6 mm, 4.2 mOhm
Similar Products
—
Quality Control
Authentic & Traceable
Shipping (In-stock)
1-3 business days
Quote Response
Within 24 Hours
Stock Status6970
QuantityCSD17581Q5A
Country

Get Tiered Pricing (Submit RFQ)

Specification
Product Details
Key Features
Documentations
TypeDescriptionTypeDescription
VDS (V)30VGS (V)20
TypeN-channelConfigurationSingle
Rds(on) at VGS=10 V (max) (mΩ)3.4Rds(on) at VGS=4.5 V (max) (mΩ)4.2
VGSTH typ (typ) (V)1.3QG (typ) (nC)20
QGD (typ) (nC)4QGS (typ) (nC)6.9
ID - silicon limited at TC=25°C (A)123ID - package limited (A)60
Logic levelYesRatingCatalog
Operating temperature range (°C)-55 to 150PackageVSONP (DQJ)
Pins8Size29.4 mm² (4.9 mm × 6 mm)
Certified Quality & Compliance
Purchase & Inquiry
Secure Packaging
Shipping & Availability
Payment

YG GROUP supports reliable sourcing through quality controls and compliance documentation. Please confirm product requirements, applicable certifications and supporting documents before ordering.

  • 1. Certification Scope: Quality certifications apply only to the entities, sites and activities listed in valid certificates. Management system certification does not certify each individual product.
  • 2. Product Authenticity: Products must match the agreed manufacturer, part number and condition. Supplier screening and authenticity checks help reduce counterfeit risk.
  • 3. Inspection & Testing: The inspection scope follows product risks and agreed requirements. Additional testing, laboratory arrangements, costs and lead times require written confirmation.
  • 4. Traceability & Documentation: Request conformity certificates, traceability records or test reports before ordering. Document availability, issuer and coverage must be confirmed for the offered goods.
  • 5. Environmental Compliance: RoHS and REACH information is based on applicable manufacturer documentation. Confirm the exact part, declaration date and relevant exemptions before ordering.
  • 6. Handling & Protection: Handling, storage and packaging follow applicable product requirements, including ESD and moisture protection where required. Special handling requirements must be agreed before ordering.
ERAI

Loading related products…

Product FAQ
Purchasing FAQ

What type of component is CSD17581Q5A, and what package does it use?

CSD17581Q5A is an authentic electronic component manufactured by Texas Instruments, categorized under Transistors. It is supplied in the standard VSONP (DQJ) package footprint, providing industry-standard mechanical dimensions and terminal configurations for board-level assembly. Full pinout configurations, physical footprint drawings, and rated operating tolerances are documented in the official CSD17581Q5A datasheet above.

Why is pricing for CSD17581Q5A available via RFQ rather than a fixed checkout price?

Electronic component spot-market pricing for CSD17581Q5A fluctuates based on real-time global availability, production date codes, minimum order quantities (MOQ), and packaging formats (e.g., Reel, Tube, Tray). Using an RFQ ensures you receive accurate, real-time volume pricing tied to verified, traceable inventory rather than stale catalog estimates.

How quickly can CSD17581Q5A be shipped once quoted?

Lead times for CSD17581Q5A depend on whether stock is dispatched from our central hub or regional franchise partners. Ready-to-ship inventory typically leaves the warehouse within 1–3 business days following quality inspection, while factory-direct or back-ordered allocations are confirmed with an estimated ship date upon RFQ reply.

Loading articles…

ISO 9001
ESD Control
Texas Instruments
  • All Categories
  • Discrete Semiconductors
  • Embedded Processors & Controllers
  • Integrated Circuits - ICs
  • Memory ICs
  • Wireless & RF Semiconductors
  • Circuit Protection
  • Connectors
  • Electromechanical
  • Embedded Solutions
  • Optoelectronics
  • Passive Components
  • Power
  • Sensors
  • Wire & Cable
  • Tools & Supplies
  • Uncategorized
  • All Categories
  • Diodes & Rectifiers
  • Discrete & Power Modules
  • Thyristors
  • Transistors

Loading articles…

New Blog

XC7Z010-1CLG400I Design Reuse: EDA, IP and Board Verification

Assess XC7Z010-1CLG400I design reuse with checks for the exact target, archived IP, tool releases, PS/PL interfaces, timing and board conditions. Keep global EDA and IP revenue growth separate from device demand or availability.

Read more →

MIC95410YFL-TR: Server Rail Inrush and Sequencing Checks

Design MIC95410YFL-TR auxiliary rails by checking IN, VS, CTL, two-stage inrush, thermal paths, and output discharge. Compare four load switches with clear limits.

Read more →

TPS54329DDAR Load-Step Selection: LC Filter, Voltage Budget and Validation

TPS54329DDAR Load-Step Selection: LC Filter, Voltage Budget and Validation

Read more →

AD8221ARMZ-R7 Bridge Sensors: Gain, Headroom and Error Budget

Select AD8221ARMZ-R7 for bridge sensing by checking ARM-grade limits, gain, common-mode voltage, reference drive, output swing and ADC loading. Compare four related instrumentation amplifiers without assuming direct replacement.

Read more →
10 similar parts

Loading related products…

Similar products
Hot products
PicturePart NumberManufacturerPDF / RoHSStockAction

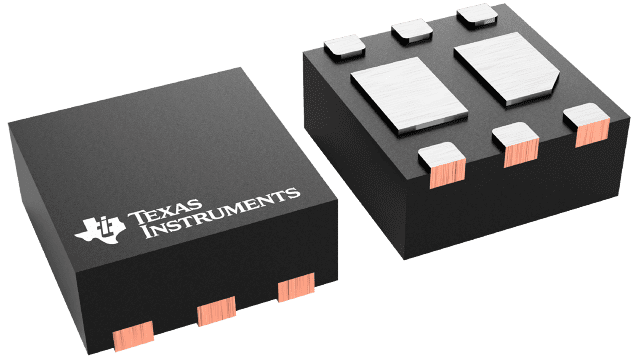

CSD85301Q2
