| Type | Description | ||
|---|---|---|---|
| Part Type | FREDFET | Technology | MOS 7 |
| Drain Source Voltage Max V (volt) | 800 | On-State Resistance (milliohms) [max] (mΩ) | 160 |
| Continuous Drain Current Max (Ampere) | 52 | Power Dissipation (W) [max] | 893 |
| Input Capacitance (pF) [Typ] | 7238 | Total Gate Charge (nC) [Typ] | 285 |
| Turn On Switching Energy [Eon] (µJ) [Typ.] | 1091 | Turn Off Switching Energy [Eoff] (µJ) [Typ.] | 1135 |
| Reverse Recovery Charge (Qrr) (µC) [Typ.] | 2 | Package | TO-264 MAX |
| Lead Count (Pins) | 3 | Package Type | TO-264 MAX |
| Temperature Range | -55C to +150C | Packing Media | TUBE |
| 5K Pricing | $34.10 |
YG GROUP supports reliable sourcing through quality controls and compliance documentation. Please confirm product requirements, applicable certifications and supporting documents before ordering.

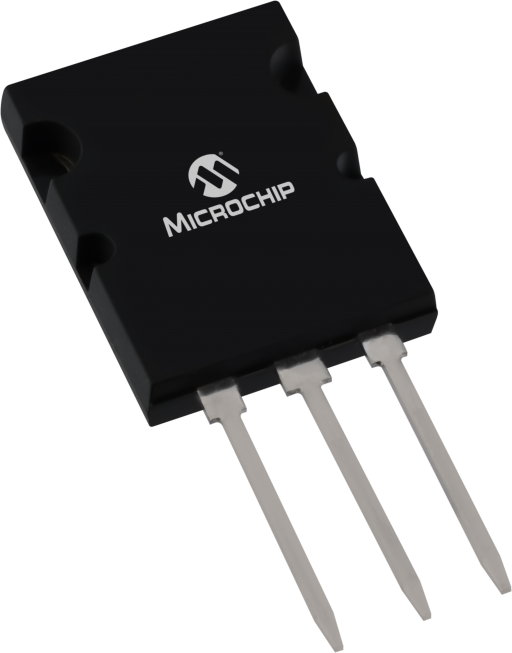

APT8014L2FLLG is an authentic electronic component manufactured by Microchip, categorized under Transistors. It is supplied in the standard TO-264 MAX package footprint, providing industry-standard mechanical dimensions and terminal configurations for board-level assembly. Full pinout configurations, physical footprint drawings, and rated operating tolerances are documented in the official APT8014L2FLLG datasheet above.
Electronic component spot-market pricing for APT8014L2FLLG fluctuates based on real-time global availability, production date codes, minimum order quantities (MOQ), and packaging formats (e.g., Reel, Tube, Tray). Using an RFQ ensures you receive accurate, real-time volume pricing tied to verified, traceable inventory rather than stale catalog estimates.
Lead times for APT8014L2FLLG depend on whether stock is dispatched from our central hub or regional franchise partners. Ready-to-ship inventory typically leaves the warehouse within 1–3 business days following quality inspection, while factory-direct or back-ordered allocations are confirmed with an estimated ship date upon RFQ reply.
