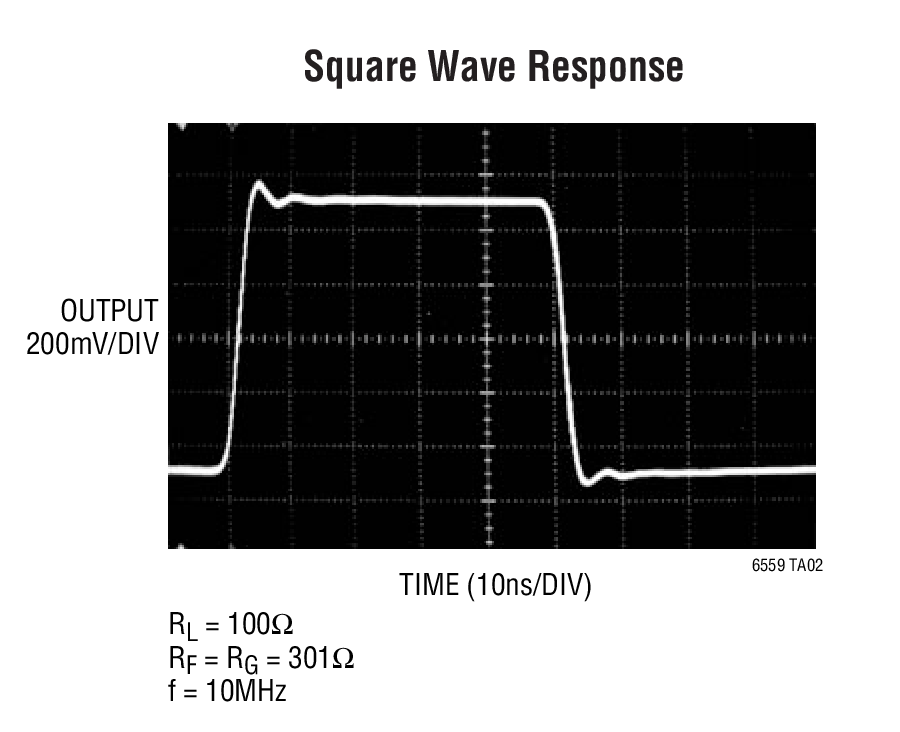

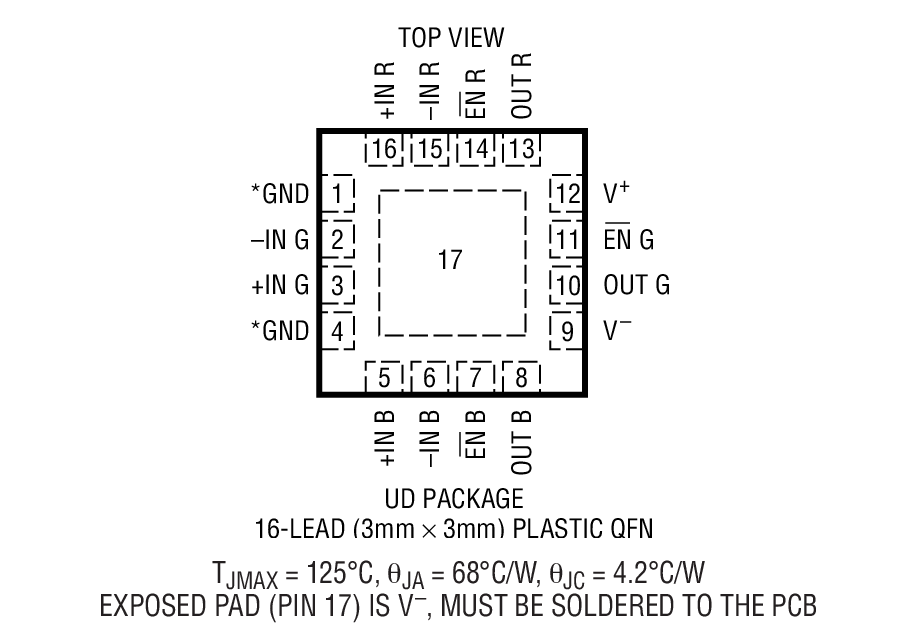

The LT6559 is a low cost, high speed, triple amplifier that has been optimized for excellent video performance on a single 5V supply, yet fi ts in the small footprint of a 3mm × 3mm QFN package. With a –3dB bandwidth of 300MHz, a 0.1dB bandwidth of 150MHz, and a slew rate of 800V/µs, the LT6559’s dynamic performance is an excellent match for high speed RGB or YPBPRvideo applications.For multiplexing applications such as KVM switches or selectable video inputs, each channel has an independent high speed enable/disable pin. Each amplifier will turn on in 30ns and off in 40ns. When enabled, each amplifier draws 3.9mA from a 5V supply. The LT6559 operates on a single supply voltage ranging from 4V to 12V, and on split supplies ranging from ±2V to ±6V.The LT6559 comes in a compact 16-lead 3mm × 3mm QFN package, and operates over a –40°C to 85°C temperature range. The LT6559 is manufactured on Linear Technology’s proprietary complementary bipolar process.
YG GROUP supports reliable sourcing through quality controls and compliance documentation. Please confirm product requirements, applicable certifications and supporting documents before ordering.
LT6559 is an authentic electronic component manufactured by Analog Devices, categorized under Amplifier ICs. It is supplied in the standard manufacturer-specified package footprint, providing industry-standard mechanical dimensions and terminal configurations for board-level assembly. Full pinout configurations, physical footprint drawings, and rated operating tolerances are documented in the official LT6559 datasheet above.
Electronic component spot-market pricing for LT6559 fluctuates based on real-time global availability, production date codes, minimum order quantities (MOQ), and packaging formats (e.g., Reel, Tube, Tray). Using an RFQ ensures you receive accurate, real-time volume pricing tied to verified, traceable inventory rather than stale catalog estimates.
Lead times for LT6559 depend on whether stock is dispatched from our central hub or regional franchise partners. Ready-to-ship inventory typically leaves the warehouse within 1–3 business days following quality inspection, while factory-direct or back-ordered allocations are confirmed with an estimated ship date upon RFQ reply.
